Brite Max Multi View 27 Straight Post Mount (Non Hinged Aluminum) Guardrail Delineator Markers
1 of 3 (Enlarge)

Brite Max Multi View 27" Straight Post Mount (Non Hinged Aluminum) Guardrail Delineator Markers

Product ID: BMGSMV0427
Price: $17.60
Quantity:
 Add to cart Checkout
« Previous | Next »
  • Description
  • Video
  • MUTCD Guidance
  • Literature

Brite-Max Multi-View 27" Straight Post Mount Guardrail Delineator Markers

The Brite-Max Multi-View Delineator is the best delineator on the market for combined safety and durability.
This Marker Sold Individually.

Use the Brite-Max Multi-View 27" Straight Post Mount Guardrail Delineator Markers to mark your guardrail with a reflective marker.

  • PRODUCT ID: BMGSMV0427(X)(XX)(S/D)
  • Reflective Sheeting (X):
    (H)
    High Intensity Prismatic
    (3) DG3 Diamond Grade

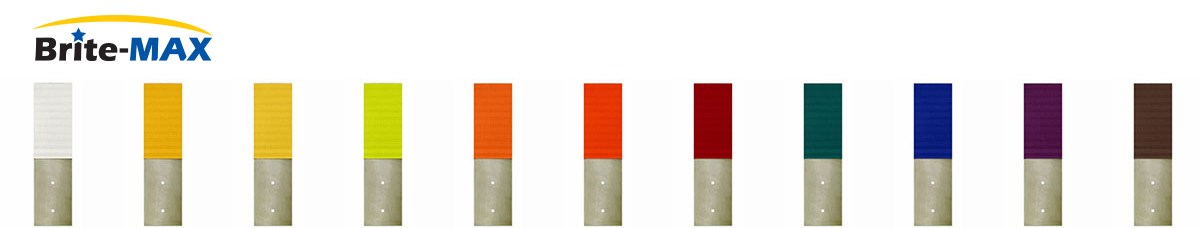

  • Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow
  • Reflective Sides (S/D): (S) Single-Sided | (D)Double-Sided
  • Reflectivity: 4" x12" sheeting provides 48" square inches of reflectivity.
  • Body Size: 3.75" x 27" x .75
  • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
  • The long term durability of aluminum backing plus the extreme angularity of the Multi-View profile combine to form an unbeatable product.
  • Illuminate invisible guardrails at night with bright reflective markers that provide clear delineation.
  • Compatibility: Easy to install on wooden guardrail posts. Multi-Views can be bolt mounted to metal guardrails.
  • NOTE: Hardware is sold separately.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max Guardrail Delineator

About Delineators

MUTCD CHAPTER 3F.01 Delineators
  • Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
  • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
  • Delineators are considered guidance devices rather than warning devices.
  • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

Color Definitions

  • WHITE: Lane markings or to mark the right pavement edge.
  • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
  • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
  • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
  • GREEN: Used for snowplow markings.
  • ORANGE/FLUORESCENT ORANGE: Used in construction work zone areas.

Catalog
Traffic Control & Roadway Safety Products view pdf
britemax
Brite-Max for Enhanced Conspicuity of Signs view pdf
Sign Care and Sign Mounting Solutions
Sign Care & Sign Mounting Solutions view pdf
