Heavy-Duty "Mast-o-Brackets" Kits for Overhead Mast Arms (All Kits)
All kits come unassembled.
-
PRODUCT ID: OSIZ84OHMWCM30(XX)BK
-

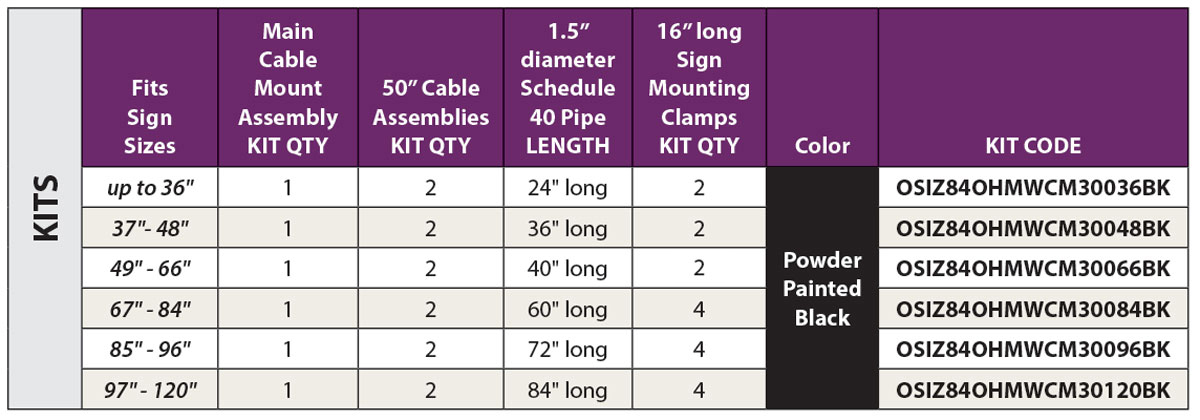

Kit #36 (XX): (036) Fits sign sizes up to 36"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 24" long x 1.5" diameter Schedule 40 Pipe, and (2) 16" long Sign Mounting Clamps
-
Kit #48 (XX): (048) Fits sign sizes up to 36-48"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 32" long x 1.5" diameter Schedule 40 Pipe, and (2) 16" long Sign Mounting Clamps
-
Kit #66 (XX): (066) Fits sign sizes up to 49"-66" | Kit includes (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 40" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps
-
Kit #84 (XX): (084) Fits sign sizes up to 67"-84"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 60" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps
-
Kit #96 (XX): (096) Fits sign sizes up to 85"-96"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 72" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps
-
Kit #120 (XX): (120) Fits sign sizes up to 97"-120"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 84" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps
-
Color/Finish: Black Semi-Gloss Powder Paint
- More Powder Paint Colors Available by Custom Order. Call 1-800-367-1492 for a quote on Custom Orders. Choose custom order colors from the CPC Standard Powder Paint Color Chart.
download pdf | view digital edition
Kit Component Descriptions
-
Main Cable Mount Assembly: The main assembly is the bracket at the center of the Mast-O-Bracket system.
-
Cable Assembly: (2 required per mount) | Length: 50" including threaded connector, 1.5" long 3/8"-16 TPI and 1.375" long 5/16" HEX. Nylon locking nut with washer provided. Free end of cable welded to prevent fraying.
-
Sign Mounting Clamp: The number of sign mounting clamps are determined by the length of sign and should be spaced accordingly. 16" Sign Mounting Clamp for using 18" or larger signs with the Mast-o-Bracket.
-
Schedule 40 Pipe: 1.5" Diameter - No Slot. The length of the schedule 40 pipe in each kit is determined by the length of the sign.
-
50" Cable Assemblies: Use Stainless Steel Cable Assemblies with Hardware provided in kits for installation to mast arm.
