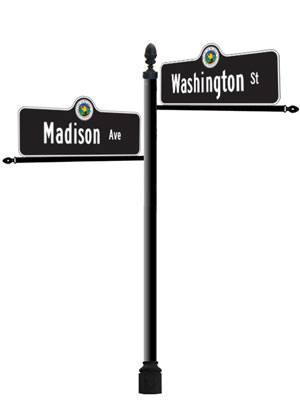

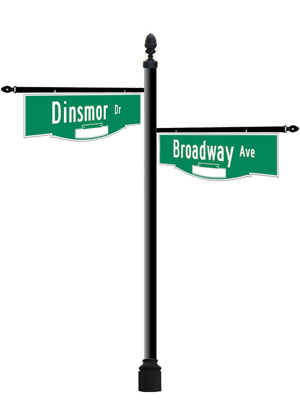

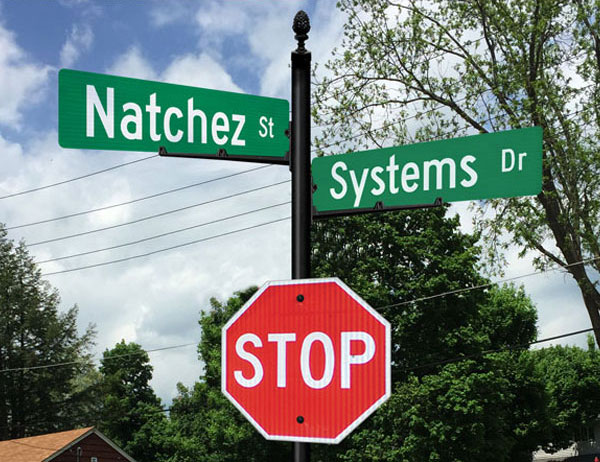

Natchez Street Name System

The Natchez Street Name System is the simplistic, sleek and modern version of our original Oxford System.

Utilize our modular components including 3” posts, post bases, sleek sign arm brackets or

metro wing brackets and finials to create your own modern system.

Browse thru the Easy Order Checklist Steps below and/or download the pdf in Literature Downloads.

Custom products Natchez Street Name System

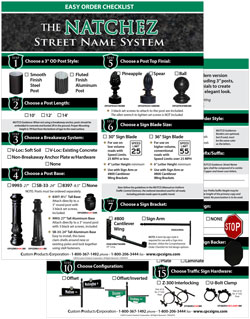

Natchez Easy Order Checklist view pdf

Custom Street Name Catalog view pdf

Choose a 3" OD Post Style:

Choose a Smooth or Fluted Finish Post..
Pre-painted Semi-Gloss Black.
NOTE: Posts must ship via truck-line.

Smooth Finish
Steel Post

Fluted Finish
Aluminum Post

Choose a Post Length:

MUTCD Guidance: When not using a breakaway anchor, posts should be embedded in concrete and buried 2ft in the ground. Proper Mounting height is 7ft foot from the bottom of sign to the road surface.

Choose Standard or Special Ground Mount:

Choose Standard or Special Ground Mount Type from available options shown.

Standard
Ground Mount

Non-Breakaway Anchor Plate
w/Hardware

V-Loc Breakaway Ground Mount

New Concrete
Soft Soil
Existing Concrete

Welded Plate Surface Mount

Non-Breakaway Welded Plate

Choose a Post Base:

Choose No Post Base or one of the Bases shown.
Pre-painted Semi-Gloss Black.
NOTE: Posts must be ordered separately.

9993:
27" Tall
Aluminum Base

OPOZBR39993BK

Attach directly to a 3" round post with 3 black set screws, included.

SB-33:
24" Tall
Aluminum Base

OPOZBR3SB33BK

Easy to install, this base clam-shells around new or existing poles and lock together using stell fasteners.

8397:
8½" Tall
Steel Base

OPOZBR38397ABK

Attach directly to a 3" round post with 3 black set screws, included.

Choose a Post Top Finial:

Choose from Pineapple, Spear or Ball Designs.
Post Top Finials are powder painted Semi-Gloss Black to match post and brackets.
3 black set screws to attach to the post are included.
The allen wrench to tighten set screws is NOT included.

Pineapple

OPOZFR3657MDBK

Spear

OPOZFR39516MDBK

Ball

OPOZFR3FINB3BK

Choose a Sign Blade Size:

Sizes follow the guidelines in the MUTCD (Manual on Uniform Traffic Control Devices), the national standard used for all roads, including private roads open to public travel.

30" Sign Blade

For use on low volume roads with Speed Limits 25 MPH or less
4" Letter Height minimum
Use with Sign Arm or #800 Cantilever Wing Brackets

36" Sign Blade

For use on higher volume,
conventional roads with
Speed Limits over 25 MPH
6" Letter Height minimum
Use with Sign Arm or #800 Cantilever Wing Brackets

Choose a Sign Bracket:

Choose the #800 Cantilever Wing or Sign Arm Bracket
Powder painted Satin Black to match posts & finials.
Black 1/4" x 1" torx head screws included to attach posts & signs.

#800 Cantilever Wing Bracket

OSIZ2UNCT800BK

24" Long

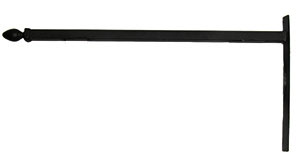

Sign Arm Bracket

OSIZ2UNSA(X)LDBK

- Lemon Drop Finial -

C = 30" Conventional Blade

J = 36" Jumbo Blade

NOTE: A bent lip sign style is required for use with a Sign Arm Bracket.

Choose a Sign Style:

Standard

NOTE: All Signs come standard with High Intensity Prismatic (HIP) sheeting
and as a Flat, Double-Faced Sign Blade, unless otherwise requested.

Deluxe (Routed)

Ridgeland

Deerfield

Madison

Dinsmor

Choose a Sign Color Scheme:

White on Green

Black on White

White on Brown

Black on White

White on Black

Other/Custom

MUTCD Guidance: Acceptable alternative background colors to Green are Blue, Brown or White. The legend shall be White, except for Black on White signs. Custom colors require adequate contrast.
