Brite Max A Style BMGA025 (Aluminum) Barrier or Guardrail Post Mount Delineator
  (Enlarge)

Brite Max A Style BMGA025 (Aluminum) Barrier or Guardrail Post Mount Delineator

Price: $10.48
Quantity:
 Add to cart Checkout
  • Description
  • MUTCD Guidance
  • Literature

Brite Max BMGA025 A Style (Aluminum) Barrier or Guardrail Post Mount Delineator

This Marker is Sold Individually.

Use the Brite Max BMGA025 A Style (Aluminum) Barrier or Guardrail Post Mount Delineator to mount of concrete barricades or guardrail posts.

  • PRODUCT ID: BMGA025(X)(XX)(S/D)
  • Reflective Sheeting (X):
    (H)
    High Intensity Prismatic
    (3) DG3 Diamond Grade
  • Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
  • Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
  • Reflectivity: 4" x 2.75" sheeting provides 11" square inches of reflectivity
  • Body Size: 6.5" long x 4" wide x 2.5" tall in the bent position.
  • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.

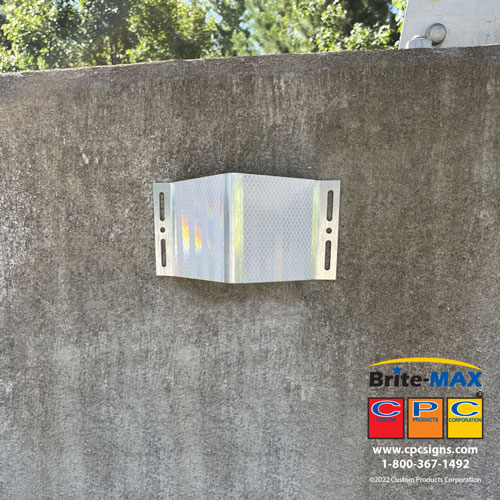

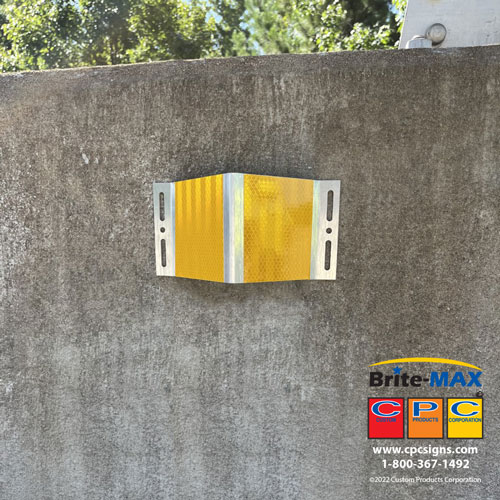

  • Compatibility: The Brite-Max A-Style BMGA025 Delineator is compatible with concrete barriers or guardrail post. Barrier mounting can be on top and/or on the side.
  • MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
  • Installation: Brite-Max A-Style Delineators have 4" x 3/4" mounting surfaces with (2) 1/4" diameter holes for fasteners and (4) 3/16" x 3/4" obround holes to assist with adhesion.

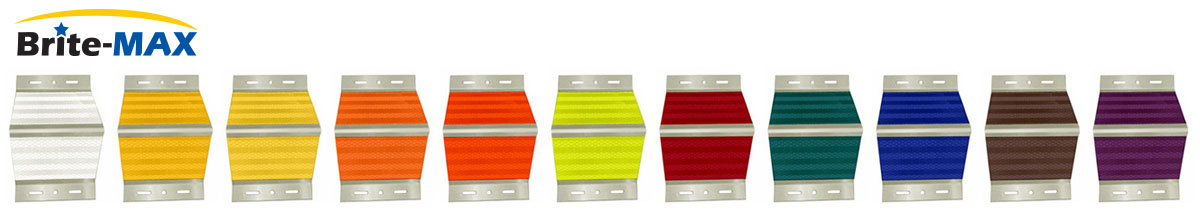

Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max A Style Barrier Mount Delineator

About Delineators

MUTCD CHAPTER 3F.01 Delineators

Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

  • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
  • Delineators are considered guidance devices rather than warning devices.
  • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

Color Definitions

  • WHITE: Lane markings or to mark the right pavement edge.
  • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
  • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
  • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
  • GREEN: Used for snowplow markings.
  • ORANGE: Used in construction work zone areas.
