Brite Max BMJB96 (Aluminum) Barrier Mount Delineator
  (Enlarge)

Brite Max BMJB96 (Aluminum) Barrier Mount Delineator

Price: $27.79
Quantity:
 Add to cart Checkout
  • Description
  • MUTCD Guidance
  • Literature

Brite Max BMJB-96 Barrier Mount Delineator

This Marker is Sold Individually. Price breaks start at 20 Markers and are reflected in the Shopping Cart.

Use the Brite Max BMJB-96 Barrier Mount Delineators on the tops and sides of barriers.

  • PRODUCT ID: BMJB096(X)(XX)(S/D)
  • Reflective Sheeting (X):
    (H)
    High Intensity Prismatic
    (3) DG3 Diamond Grade
    (D) VIP Diamond Grade

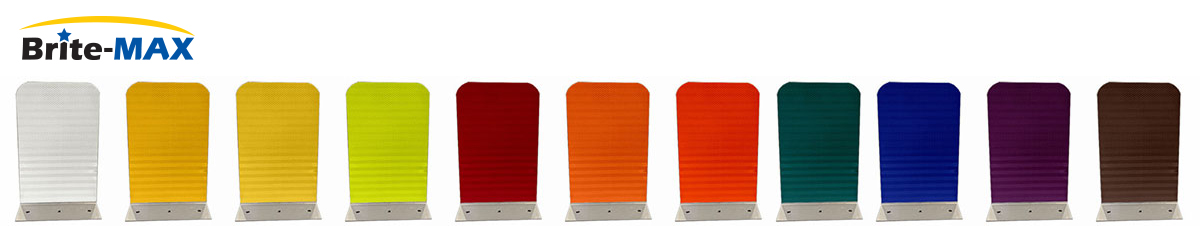

  • Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow | (OR) Fluorescent Orange
  • Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
  • Reflectivity: 8 x 12" sheeting provides 96" square inches of reflectivity
  • Tab Size: 3"
  • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
  • Compatibility: The Brite-Max BMJB-96 can be used for top or side mount applications.
  • MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
Key features of Brite-Max Portable Concrete Barrier Markers:
  • BMJBs are becoming DOT approved nationwide in states which prefer durable aluminum over plastic!
  • Also known as a "Jersey" Barrier Marker.
  • Typical applications include temporary and permanent concrete barriers, concrete bridge parapets and wooden guardrail posts.
  • BMJB bases are pre-drilled for either adhesive or bolt mounting.
  • Installation: BMJBs have 3/8" holes pre-drilled for permanent 5/16" hardware installations. Use adhesives for a quick, reliable and less labor intensive installation. Standard pavement marking adhesives are available for purchase. Also, Dapco brand 795A Adhesive (RPMAEPOXYTUBE1P) is available through special order by calling customer service at 1-800-367-1492.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max Barrier Mount Delineator

About Delineators

MUTCD CHAPTER 3F.01 Delineators

Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

  • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
  • Delineators are considered guidance devices rather than warning devices.
  • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

Color Definitions

  • WHITE: Lane markings or to mark the right pavement edge.
  • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
  • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
  • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
  • GREEN: Used for snowplow markings.
  • ORANGE: Used in construction work zone areas.
