New Header Warning Plaques
New Header Plaques enhance the message of newly placed signs.
-
PRODUCT ID: S(XXXX)W1615P(X)A(Y)
-
Size (XXXX): (2412) 24" x 12" for use on Single Lane/Multi-Lane Roads
-
Reflective Sheeting (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade Cubed
(3)A(Y) Fluorescent DG3 Diamond Grade Cubed
-
Substrate: .080" Aluminum
-
MUTCD Sign Designation: W16-15P
- Learn about Digitally Printed Traffic Signs

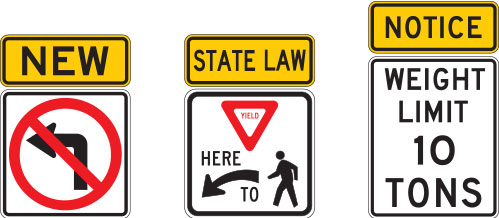

For MUTCD Compliant Enhanced Conspicuity, add a solid yellow or fluorescent yellow rectangular "header panel" above a standard regulatory sign, with a legend such as "NEW", "STATE LAW", "NOTICE" or other appropriate text.
