No Turns Sign for Temporary Traffic Control
No Turns Sign informs motorists that turns are not allowed.
-
PRODUCT ID: S(XXXX)R33(X)A
-
Size (XXXX):
(2424*) 24" x 24" for use on Conventional^ Single Lane Roads
(3636+) 36" x 36" for use on Multi-Lane Roads/Expressway/Freeway
(4848+) 48" x 48" Oversized for Enhanced Conspicuity
- NOTES:
^ Conventional Roads include Single and Multi-Lane Roads.
* Denotes there is a different minimum size required for multi-lane roads from Table 2B-1.
+ Denotes sizes from Table 2B-1 not listed for road types in Table 6F-1. | view table 2B.1
-
Reflective Sheeting (X): (H) High Intensity Prismatic | (3) DG3 Diamond Grade Cubed
-
Substrate: .080" Aluminum
-
MUTCD Sign Designation: R3-3

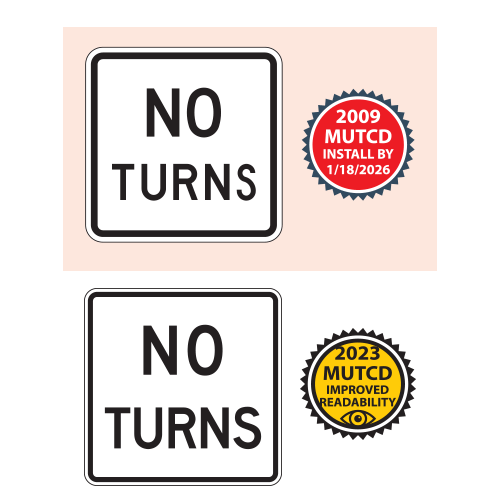

- This legend has an UPDATED 2023 MUTCD Improved Readability Legend. 2009 MUTCD versions of this legend should be installed by 1/18/2026.
