PCBM-T9 Hinged Markers[150/BOX]
PCBM-T9 is a hinged version of the PCBM-9.
This Marker Sold per Box of 150.
Use the PCBM-T9 Hinged Markers on the tops of barriers.
-
PRODUCT ID: RDBMPCBMT9H(XX)(X)
-
Reflective Sheeting: 9 square inches of High Intensity Prismatic
-
Reflective Colors (XX): (YE) Yellow | (WH) White
-
Reflective Sides (X): (S) Single-Faced | (D) Double-Faced
- Body Material: UV-stabilized polymers for long life in both work zones and permanent installations.
- Compatibility: The PCBM-T9 is designed for use on top of movable barrier systems.
-
MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.

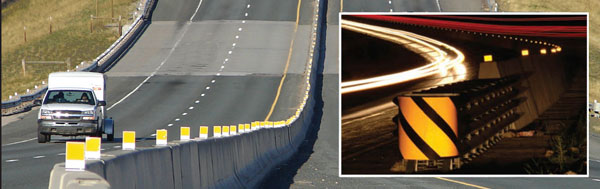

Key features of Portable Concrete Barrier Markers:
- PCBMs meet specifications nationwide!
- Also known as a "Jersey" Barrier Marker.
- Typical applications include temporary and permanent concrete barriers, concrete bridge parapets and wooden guardrail posts.
- PCBM bases are pre-drilled for either adhesive or bolt mounting.
- Installation: Use adhesives for a quick, reliable and less labor intensive installation.
Standard pavement marking adhesives are available for purchase. Also, Dapco brand 795A Adhesive (RPMAEPOXYTUBE1P) is available thru special order by calling customer service at 1-800-367-1492.
About Delineators
Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
-
Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
-
Delineators are considered guidance devices rather than warning devices.
-
Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.
Color Definitions
-
WHITE: Lane markings or to mark the right pavement edge.
-
YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
-
RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
-
BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
-
GREEN: Used for snowplow markings.
-
ORANGE: Used in construction work zone areas.
