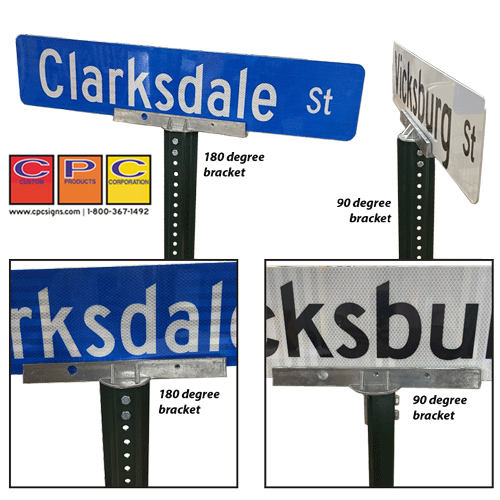

Silver 12" Jumbo Bracket: 90 Degrees for U-Channel Posts

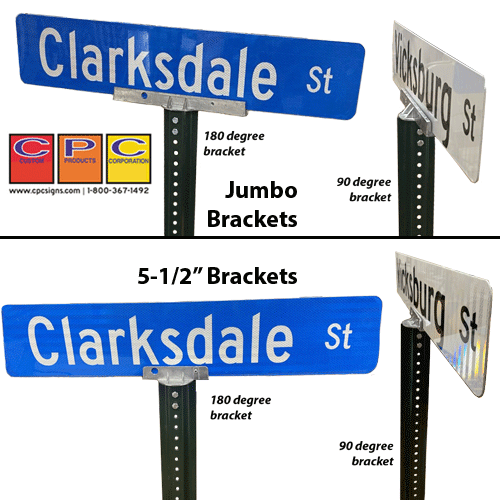

Got Big Signs? Then you need Jumbo Brackets.
-
PRODUCT ID: RPB412U(F/X)OL90
-
For Blade Type: (F) Flat or (X) Extruded Blades
-
Slot Size: 12"
-
Compatibility: This bracket is designed for use with all U-Channel posts.
-
Material: Aluminum
-
Color: Silver
-
Hardware: This bracket comes individually packaged in a plastic bag with the hardware pre-inserted in bracket to attach bracket to sign and bracket to post. Vandal resistant hardware upgrades are available.
-
MUTCD Guidance: Recommended for street name sign blades 9" tall.
-
Installation Notes: Brackets must be installed with appropriate hand tools. Brackets should be hand tightened to 3 Foot Pounds of Torque. This is sufficient for the set screw to bite into the aluminum sign and prevent it from coming out of the bracket. Over-tightening causes the bracket to flare and ultimately break as well as embed itself into the aluminum sign. Power tools such as drills and impacts should NOT be used. Power tools cause over tightening, which in turn, causes bracket failure. Returns or exchanges are not available if power tools have been used.
-
NOTE: Available in box quantities by calling customer service at 1-800-367-1492.
