Silver U Channel Surface Mount Post Anchor Base

RPOCZSMUPOSTANCHOR
Price: $112.13
Quantity
Add to cart
« Previous | Next »
  • Description
  • Literature

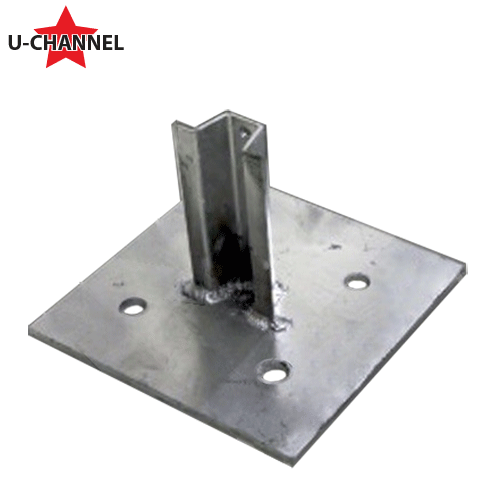

Silver U-Channel Surface Mount Post Anchor Base

The Surface Mount Post Anchor Base can be used with 2-3 lb U-channel posts.

  • PRODUCT ID: RPOCZSMUPOSTANCHOR
  • Base Size: 10" x 10" x 1/4"
  • Post Sleeve Size: 6"
  • Material: Steel
  • Color: Silver
  • U-Channel Post Anchor Base with U-Channel Post Sleeve with a compatibility size of 2 to 3 lb u-channel posts.
  • Hardware: Sold Separately.
  • NOTE: Anchor screws to mount to concrete, sold separately. (4) Four required, see below. Not recommended for mounting to asphalt.

Surface Mount Anchor Screws for Concrete

  • PRODUCT ID: RHSMSCA1240 - 1/2" x 4"
  • Removable and re-usable one-piece concrete anchor screws have a finished hex head, an integral washer, dual-lead threads and a chamfered tip.
  • One-piece bolts eliminate the need to keep track of and assemble separate pieces of traditional molly bolts before installation.
  • Dual-lead threads prevent the bolts from spinning in the holes when tightened.
  • The 1/2" x 4" screw is recommended for mounting surface mount metal plates to concrete.
  • Drill a pilot hole before installing the screw.
  • Installation Notes on the Challenge of Anchoring to Asphalt: Asphalt is gravel held together with oily pitch ("Bitumen"). Unlike concrete, asphalt will yield to forces applied for extended amount of time. For this reason, the common expansion anchors (which are used on concrete) can not be used for fastening to asphalt. Any expansion anchor installed in asphalt will loosen and fail within days.

Posts, Brackets and Hardware Guide
Posts, Brackets & Hardware Guide view pdf
Breakaway
Breakaway Sign Supports view pdf
