MUTCD PART 9
Traffic Control for Bicycle Facilities view pdf | view table 9B.1
Quick Reference: Sign Sizes for Roadway Type view chart
Stop Sign for Bicycle Facilities
Keep cyclists and motorists safe with our Stop Sign for Bicycle Facilities.
-
PRODUCT ID: S(XXXX)R11(H)A
-
Size (XXXX): (1818) 18" x 18" | (3030) 30" x 30"
-
Reflective Sheeting (X): (H) High Intensity Prismatic | (3) DG3 Diamond Grade
-
Substrate: .080" Aluminum
-
MUTCD Sign Designation: R1-1
- Learn about Digitally Printed Traffic Signs
About Regulatory Signs
Regulatory signs are mostly a combination of black, white and red colors. They communicate “the rules of the road “ - the laws and regulations. Refer to the MUTCD for more information.
Replacement Requirements*
Regulatory signs are important to maintain as the absence of, or damage to, could quickly result in or contribute to a severe crash. Damaged or missing regulatory signs should be replaced or repaired within hours of the agency having notice of them missing, down or damaged.
* Maintenance of signs and sign support: FHWA-SA-09-025

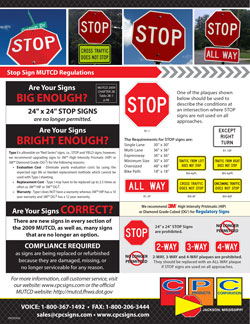

Are Your Signs Big Enough?
Size Requirements for STOP signs:
Single Lane - 30" x 30"
Multi Lane - 36" x 36"
Expressway - 36" x 36"
Minimum - 30" x 30"
Oversized - 48" x 48"
Bike Path - 18" x 18"
NOTE: 24" x 24" STOP SIGNS are prohibited on roadways.
Are Your Signs Bright Enough?
We recommend 3M DG3 Diamond Grade or HIP for all Regulatory Signs for the best overall value and warranty included.
