MUTCD PART 8
Traffic Control for Railroad and Light Rail Transit Grade Crossings view pdf | view table 8B.1
Quick Reference: Sign Sizes for Roadway Type view chart
Yield Sign
Use our Yield Sign to alert motorists of an upcoming intersection.
-
PRODUCT ID: S(XXXX)R12(X)A
-
Size (XXXX):
(3636) 36" x 36" x 36" for use on Single Lane Roads
(4848) 48" x 48" x 48" for use on Multi-Lane Roads/Expressway
(3030) 30" x 30" x 30" for Use on Low Volume Roads Only
-
Reflective Sheeting (X): (H) High Intensity Prismatic | (3) DG3 Diamond Grade
-
Substrate: .080" Aluminum
-
MUTCD Sign Designation: R1-2
- Learn about Digitally Printed Traffic Signs
MUTCD Guidance

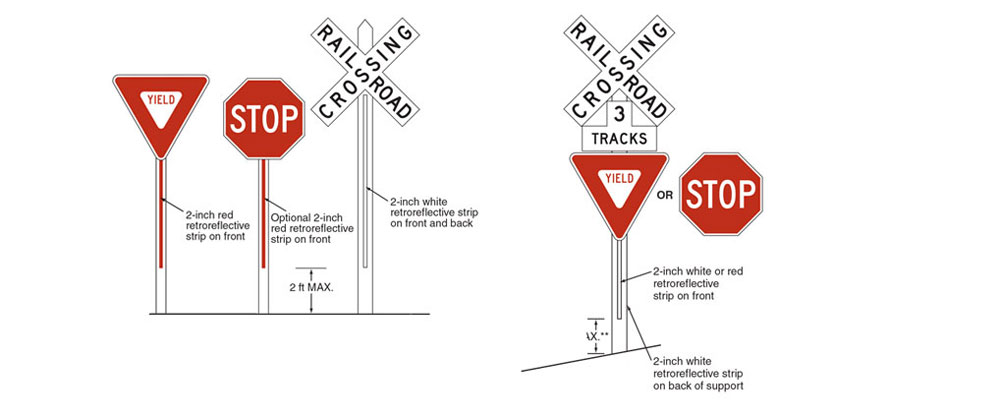

A red or white reflective strip may be used on the front and back of all supports for signs at passive highway-rail grade crossings extending from the bottom of the sign to within 2 feet above the ground. see graphic for guidance. view product
Brite-Max Multi-View or Single View Post Reflectors enhance conspicuity of sign supports and meet MUTCD requirements. view products
