Meridian Street Name Systems

The Meridian Street Name System is our unique wing bracket mount ornamental system. Utilize our newest modular components including 3" posts, post bases, sign panel brackets and post closure caps to create a strong and reliable system. Powder coated semi-gloss black for an elegant look.

Browse thru the Easy Order Checklist Steps below and/or download the pdf in Literature Downloads.

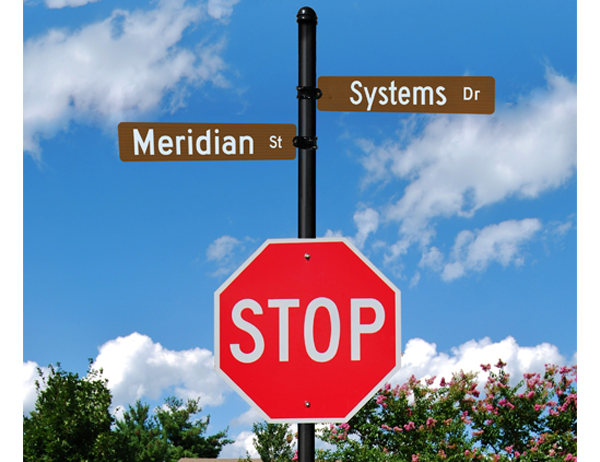

Meridian Street Name System with Street Name Signs and Stop Sign

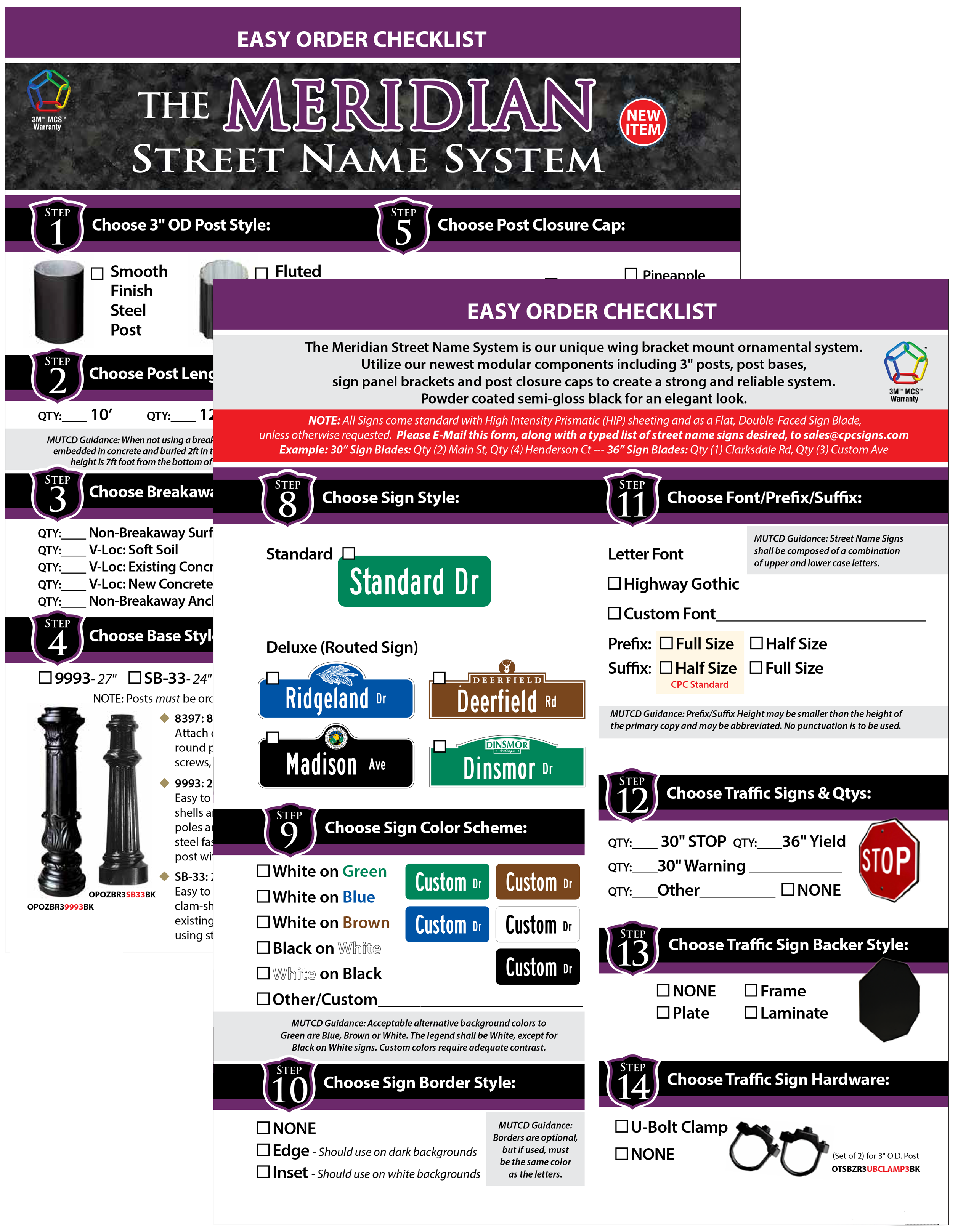

Meridian Street Name System Easy Order Checklist

Meridian Easy Order Checklist view pdf

Custom Street Name Packages, Systems and Components Catalog

Custom Street Name Catalog view pdf

Choose 3" OD Post Style

Choose a Smooth or Fluted Finish Post..
Pre-painted Semi-Gloss Black.
NOTE: Posts must ship via truck-line.

Smooth Finish
Steel Post

Fluted Finish
Aluminum Post

Choose Post Length:

MUTCD Guidance: When not using a breakaway anchor, posts should be embedded in concrete and buried 2ft in the ground. Proper Mounting height is 7ft foot from the bottom of sign to the road surface.

Choose Standard or Special Ground Mount:

Choose Standard or Special Ground Mount Type from available options shown.

Standard
Ground Mount

Non-Breakaway Anchor Plate
w/Hardware

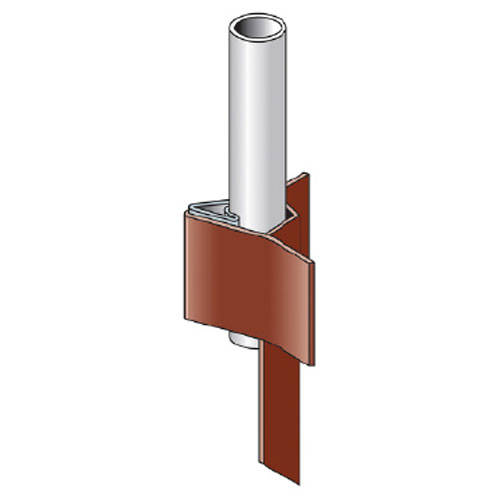

V-Loc Breakaway Ground Mount

New Concrete
Soft Soil
Existing Concrete

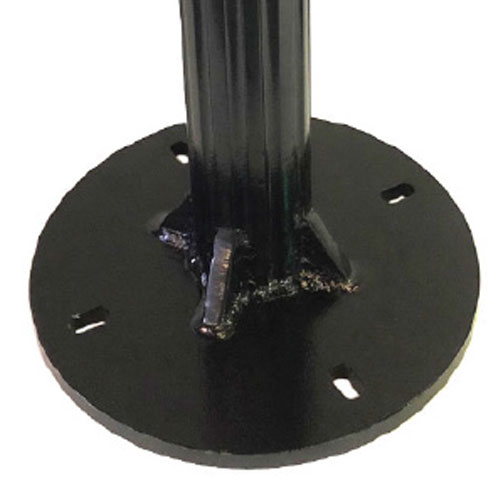

Welded Plate Surface Mount

Non-Breakaway Welded Plate

Choose Post Base:

Choose No Post Base or one of the Bases shown.
Pre-painted Semi-Gloss Black.
NOTE: Posts must be ordered separately.

9993:
27" Tall
Aluminum Base

OPOZBR39993BK

Attach directly to a 3" round post with 3 black set screws, included.

SB-33:
24" Tall
Aluminum Base

OPOZBR3SB33BK

Easy to install, this base clam-shells around new or existing poles and lock together using stell fasteners.

8397:
8½" Tall
Steel Base

OPOZBR38397ABK

Attach directly to a 3" round post with 3 black set screws, included.

Choose Post Closure Cap:

Choose from Deluxe Dome, Ball, Spear or Pineapple Design.
Post Top Finials are powder painted Semi-Gloss Black to match post and brackets.
3 black set screws to attach to the post are included.
The allen wrench to tighten set screws is NOT included.

Deluxe Dome

OPOZFR3DD3BK

Pineapple

OPOZFR3657MDBK

Spear

OPOZFR39516MDBK

Ball

OPOZFR3FINB3BK

Choose Sign Blade Size:

Sizes follow the guidelines in the MUTCD (Manual on Uniform Traffic Control Devices), the national standard used for all roads, including private roads open to public travel.

30" Sign Blade

For use on low volume roads with Speed Limits 25 MPH or less
4" Letter Height minimum
Use with 5½" Premium Sign Brackets

36" Sign Blade

For use on higher volume,
conventional roads with
Speed Limits over 25 MPH
6" Letter Height minimum
Use with 12" Jumbo Sign Brackets

Choose Sign Bracket Style:

Sign Panel Bracket

For use with 30" and 36" Blades and Traffic Signs
Powder painted Satin Black to match posts & bases.
Note: Meridian Packages utilize .125" aluminum street name signs. The extra thickness keeps long blades sturdy even in high winds.

OSIZ5SPR3BK

3" OD Sign Panel Bracket

Sign Panel Brackets support the 36” sign blades created for the implementation of 6” copy on street name signs.

Choose Sign Style:

NOTE: All Signs come standard with High Intensity Prismatic (HIP) sheeting and as a Flat, Double-Faced Sign Blade, unless otherwise requested. Meridian Packages utilize .125" aluminum street name signs. The extra thickness keeps long blades sturdy even in high winds.

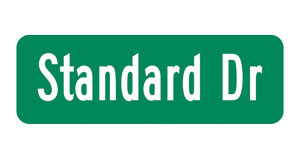

Standard

Deluxe (Routed)

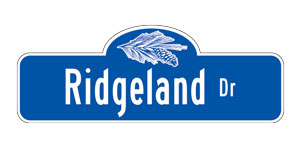

Ridgeland

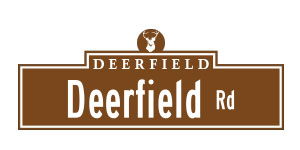

Deerfield

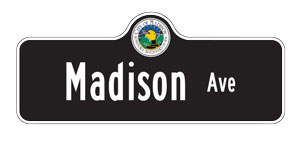

Madison

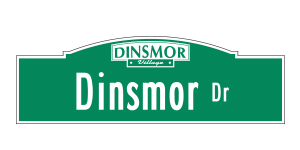

Dinsmor

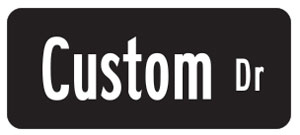

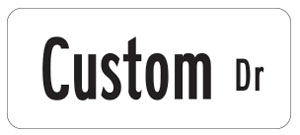

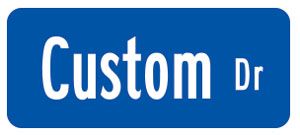

Choose Sign Color Scheme:

MUTCD Guidance: Acceptable alternative background colors to Green are Blue, Brown or White. The legend shall be White, except for Black on White signs. Custom colors require adequate contrast.
