Barricade Sheeting - High Intensity Prismatic
Use Barricade Sheeting - High Intensity Prismatic to make your own barricades.
-
PRODUCT ID: RSH333(X)(S)0850
-
Reflective Sheeting: High Intensity Prismatic
-
Stripe Colors: Orange/White
-
Stripe Width/Tape Width (X): (4) 4" Stripe Width/8" Tape Width | (6) 6" Stripe Width/8" Tape Width
-
Stripe Slant Direction (S): (L) Left | (R) Right
-
Quantity: 50 Yard Roll
-

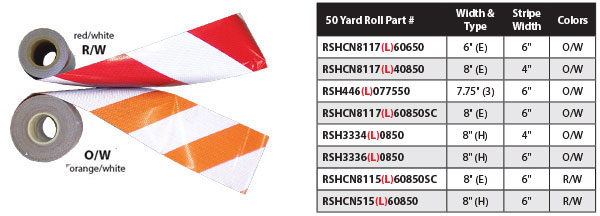

Available online barricade sheeting options shown in below chart.
-
Also available by the foot. Call customer service at 1-800-367-1492 to order additional options.
A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.
-
Type 1 Barricades may be used on conventional roads or urban streets.
-
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
-
Type 3 Barricades should be used to close or partially close a road.
-
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
-
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.
The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.
-
4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
-
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
-
Red/White Stripes: STOP or Prohibition (Permanent)
-
Orange/White Stripes: indicate Temporary Traffic Control
-
NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
