Name: Barricade Sheeting 50 Yard Rolls | Engineer Grade | 6 inch Stripe | 8 inch Wide [BOX/6 ROLLS]
SKU: RSHCN811(C)(L/R)60850SC
Availability: InStock

Barricade Sheeting 50 Yard Rolls | Engineer Grade | 6 inch Stripe | 8 inch Wide [BOX/6 ROLLS]

No reviews yet Write a Review

SKU:

RSHCN811(C)(L/R)60850SC

6" Stripe, 8" Wide Tape, 50 yards Barricade Sheeting Rolls - Engineer Grade

This product sold by a BOX of 6, 50 Yard Rolls.

Use pre-striped barricade engineer grade sheeting rolls to create your own barricades. Reflective sheeting with universal pressure sensitive adhesive compatible for use on wood, metal, and plastic substrates.

PRODUCT ID: RSHCN811(C)(L/R)60850SC
Reflective Sheeting: Engineer Grade
Stripe Colors (C): (7) Orange/White | (5) Red/White
Stripe Slant Direction: (L) Left | (R) Right
Stripe Width/Tape Width: 6" Stripe Width/8" Tape Width
Quantity: Box of 6 Rolls, 50 yards each roll

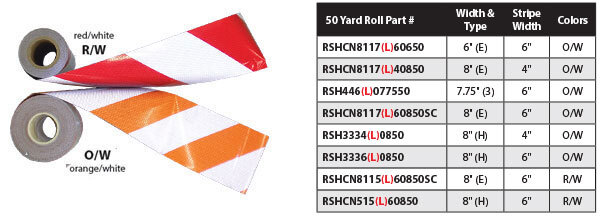

Available online barricade sheeting options shown in below chart.
Some options may be available by the foot. Call customer service at 1-800-367-1492 to order additional options.

Barricade Sheeting

Videos

About Barricades

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

Type 1 Barricades may be used on conventional roads or urban streets.
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
Type 3 Barricades should be used to close or partially close a road.
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

About Barricade Stripes

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
Red/White Stripes: STOP or Prohibition (Permanent)
Orange/White Stripes: indicate Temporary Traffic Control
NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
