Black Semi-Gloss Powder Painted | Heavy Duty "Mast o Brackets" Kits for Overhead Mast Arms
All mast mounting bracket kits come unassembled.

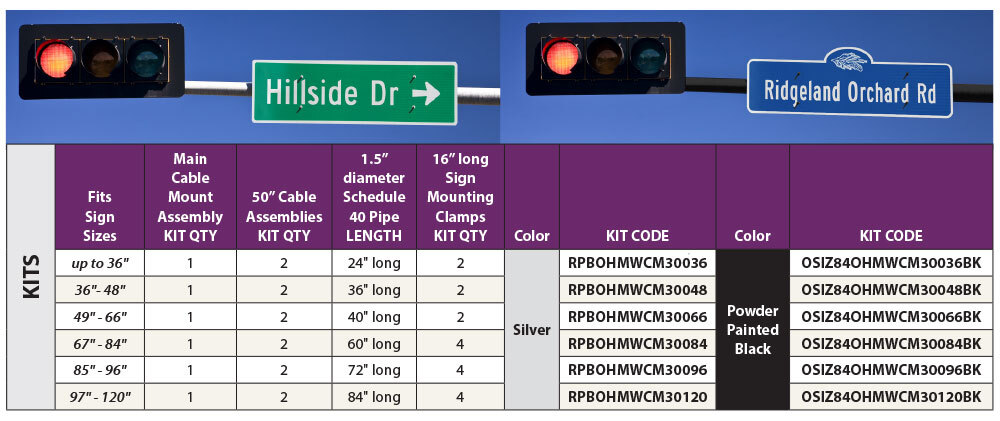

- PRODUCT ID: OSIZ84OHMWCM30(XX)BK
- Kit #36 (XX): (036) Fits sign sizes up to 36"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 24" long x 1.5" diameter Schedule 40 Pipe, and (2) 16" long Sign Mounting Clamps - Kit #48 (XX): (048) Fits sign sizes up to 36-48"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 36" long x 1.5" diameter Schedule 40 Pipe, and (2) 16" long Sign Mounting Clamps - Kit #66 (XX): (066) Fits sign sizes up to 49"-66" | Kit includes (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 40" long x 1.5" diameter Schedule 40 Pipe, and (2) 16" long Sign Mounting Clamps
- Kit #84 (XX): (084) Fits sign sizes up to 67"-84"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 60" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps - Kit #96 (XX): (096) Fits sign sizes up to 85"-96"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 72" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps - Kit #120 (XX): (120) Fits sign sizes up to 97"-120"
Kit includes: (1) Main Cable Mount Assembly, (2) 50" Cable Assemblies, (1) 84" long x 1.5" diameter Schedule 40 Pipe, and (4) 16" long Sign Mounting Clamps
Kit Component Descriptions
- Main Cable Mount Assembly: The main assembly is the bracket at the center of the Mast-O-Bracket system.
- Cable Assembly: (2 required per mount) | Length: 50" including threaded connector, 1.5" long 3/8"-16 TPI and 1.375" long 5/16" Hex bolt. Nylon locking nut with washer provided. Free end of cable welded to prevent fraying.
- Sign Mounting Clamp: The number of sign mounting clamps are determined by the length of sign and should be spaced accordingly. 16" Sign Mounting Clamp for using 18" or larger signs with the Mast-o-Bracket.
- Schedule 40 Pipe: 1.5" Diameter - No Slot. The length of the schedule 40 pipe in each kit is determined by the length of the sign.
- 50" Cable Assemblies: Use Stainless Steel Cable Assemblies with Hardware provided in kits for installation to mast arm.
