Name: Brite Max A Style BMGA04 (Aluminum) Barrier Mount Delineator
SKU: BMGA04(X)(XX)(S/D)
Availability: InStock

Brite Max A Style BMGA04 (Aluminum) Barrier Mount Delineator

No reviews yet Write a Review

SKU:

BMGA04(X)(XX)(S/D)

Brite Max BMGA04 A Style (Aluminum) Barrier Mount Delineator

Use the Brite Max BMGA04 A Style (Aluminum) Barrier Mount Delineator on concrete barriers.

PRODUCT ID: BMGA04(X)(XX)(S/D)
Reflective Sheeting (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade
Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
Reflectivity: 4" x 4.625" sheeting provides 18.5" square inches of reflectivity
Body Size: 10.375" long x 4" wide x 4" tall in the bent position.
Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
Compatibility: The Brite-Max A-Style BMGA04 Delineator is compatible with concrete barriers top side mounting only.
MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
Installation: Brite-Max A-Style Delineators have 4" x 1.25" mounting surfaces with (2) 1/4" diameter holes for fasteners and (6) 1/4" x 1 1/4" obround holes to assist with adhesion.

Videos

Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.

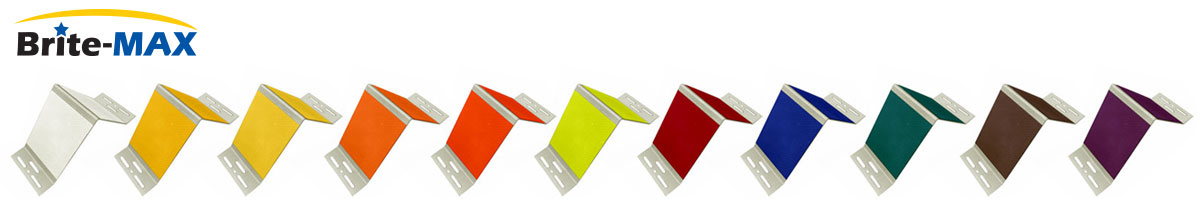

Brite Max A Style Barrier Mount Delineator

About Delineators

MUTCD CHAPTER 3F.01 Delineators

Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
Delineators are considered guidance devices rather than warning devices.
Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

Color Definitions

WHITE: Lane markings or to mark the right pavement edge.
YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
GREEN: Used for snowplow markings.
ORANGE: Used in construction work zone areas.
