Name: JD Cube Barrier Markers [100/BOX]
SKU: RDBMJD(1/2)(XX)
Availability: InStock

JD Cube Barrier Markers [100/BOX]

No reviews yet Write a Review

SKU:

RDBMJD(1/2)(XX)

JD Cube Barrier Markers [100/BOX]

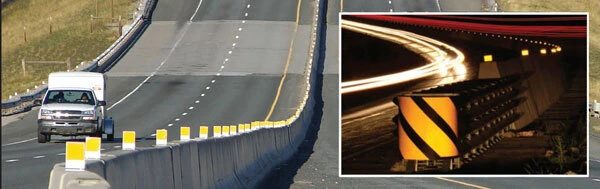

Use the JD Cube Barrier Markers around sharp curves or obstructions. Mount the PCBM-L16 Barrier Markers to the tops or sides of barriers.

PRODUCT ID: RDBMJD(1/2)(XX)
Reflective Sides (1/2): (1) Single-Face | (2) Double-Faced
Reflective Colors (XX): (YE) Yellow | (WH) White
Size: 3" high and 5 1/2" wide.
The JD Cube is bright!
Delineates the barrier far in advance to approaching drivers.
The JD Cube is the largest acrylic cube corner delineator in the industry.
More than two times brighter than requirements for prismatic reflectors as shown by state photometric tests.
Marker Materials: ABS and Acrylic
MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity. Exceeds all state and federal brightness standards.

Key features of Portable Concrete Barrier Markers:

PCBMs meet specifications nationwide!
Also known as a "Jersey" Barrier Marker.
Typical applications include temporary and permanent concrete barriers, concrete bridge parapets and wooden guardrail posts.
PCBM bases are pre-drilled for either adhesive or bolt mounting.
Installation: Use adhesives for a quick, reliable and less labor intensive installation. Standard pavement marking adhesives are available for purchase. Also, Dapco brand 795A Adhesive (RPMAEPOXYTUBE1P) is available thru special order by calling customer service at 1-800-367-1492.

Barrier Markers

About Delineators

MUTCD CHAPTER 3F.01 Delineators

Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
Delineators are considered guidance devices rather than warning devices.
Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

Color Definitions

WHITE: Lane markings or to mark the right pavement edge.
YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
GREEN: Used for snowplow markings.
ORANGE: Used in construction work zone areas.
