Name: Object Marker (Rectangle) Faces for Guardrails
SKU: F(XXXX)OM3(L/R)(X)P
Availability: InStock

Object Marker (Rectangle) Faces for Guardrails

No reviews yet Write a Review

SKU:

F(XXXX)OM3(L/R)(X)P

Object Marker (Rectangle) Faces for Guardrails

Minimum Order requirements of 8 for Guardrail Faces in size 24" x 12.7" with DG3 Diamond Grade Sheeting.

Object Marker Faces for the end of street guardrails warn and alert road users to the guardrail adjacent to or within the roadway.

PRODUCT ID: F(XXXX)OM3(L/R)(X)P
Size (XXXX): (1816) 18" x 16" | (24127) 24" x 12.7" | (2416) 24" x 16"
Stripe Direction (L/R): (L) Left | (R) Right
NOTE: Rectangle object marker faces can be used vertically or horizontally. Rectangle Faces can be rotated 90 degrees for use as opposite stripe direction. Example: Rotate a rectangle "right" stripe 90 degrees (from horizontal to vertical) to use as "left" stripe. Rotate 180 degree and the rectangle "right" stripe remains a "right" stripe. See About Object Marker Stripes Tab for more info.
Reflective (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade
(3)P(Y) Fluorescent DG3 Diamond Grade
Stripe Sizes: 3" stripes
Substrate: Reflective Sheeting Face with Adhesive
Installation: Face has adhesive back for direct application to metal guardrail surface with proper surface preparation.

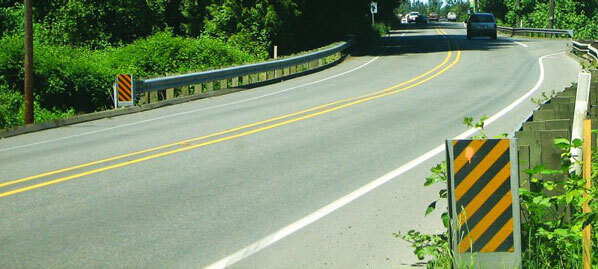

Type 3 Object Marker Faces for Guardrails

About Object Marker Stripes

Black/Yellow Stripes: indicates warning in permananent locations

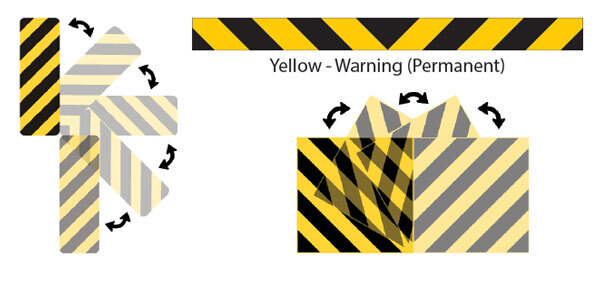

Rectangle Object Markers: Rectangle faces can be used vertically or horizontally. Rectangle Faces can be rotated 90 degrees for use as opposite stripe direction. Example: Rotate a rectangle "right" stripe 90 degrees (from horizontal to vertical) to use as "left" stripe. Rotate 180 degree and the rectangle "right" stripe remains a "right" stripe. Shown Above Left.
Square Object Markers: Can be used as both "right" and "left" options by simply rotating them 180 degree. Shown Above Right: Rotate the "left" object marker, it becomes a "right".

black and yellow stripes

About Object Markers

The purpose of object markers is to mark obstructions located within or adjacent to the roadway including underpass piers, bridge abutments, handrails, ends of traffic barriers, utility poles, and culvert headwalls. Other roadside conditions, such as narrow shoulders, drop-offs, gores, small islands, and abrupt changes in the roadway alignment, that might make it undesirable for a road user to leave the roadways, also create a need for a marker. Refer to the MUTCD for more information.

Above Grade Clearance for Object Markers: 4 feet from the ground to the bottom of the object marker.
Type 1 Object Markers: Used to mark obstructions within the roadway.
Type 2 Object Markers: Used to mark obstructions adjacent to the roadway.
Type 3 Object Markers: Used to mark obstructions adjacent to or within the roadway.
Type 4 Object Markers: Used to warn and alert road users of the end of a roadway.
