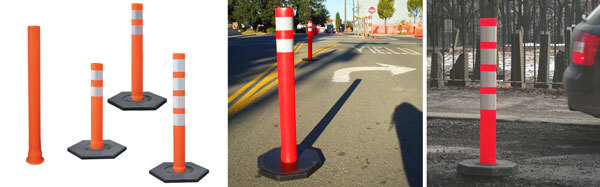

Portable Open-Top Tube Delineator
The Portable Open-Top Tube Delineator does not come with a base.
- PRODUCT ID: RSPCTPO42D3
- Height: 42"
- Weight: 1.7 lbs.
- Reflective Stripes: (2) 3" Diamond Grade Stripes
- Post Diameter: 4"
- Quick and easy set-up.
- Flange on bottom grabs base for tight fit.
- MASS Passed
- Compatibility: For use with either an 8lb., 10lb, 12lb. or 18 lb. base, Sold Separately.
- Call customer service at 1-800-367-1492 for additional options.
About Channeling Devices
Channelizing devices include cones, tubular markers, vertical panels, drums, barricades, and longitudinal channelizing devices. The function of channelizing devices is to warn road users of conditions created by work activities in or near the roadway and to guide road users. Listed below are MUTCD highlights. Refer to MUTCD for more information.
- All channelizing devices shall be crashworthy.
- Channelizing Cones shall be a minimum of 18" in height for daytime and low speed roadways under 40 mph. (See Figure 6F-7)
- Channelizing Cones shall be a minimum of 28" in height with (2) stripes for night, freeway and high speed roadway over 45 mph. (See Figure 6F-7)
- Stripes shall be 3" in size and meet minimum retro-reflectivity standards. (See Figure 6F-7)
- Warning lights may be added to channelizing devices for added driver visibility.
