Name: 3 Barricade Boards to Square Post Uprights Hardware Kit
SKU: RSPB3ZBUZSPUH
Price: 7.45 USD
Availability: InStock

3 Barricade Boards to Square Post Uprights Hardware Kit

No reviews yet Write a Review

SKU:

RSPB3ZBUZSPUH

Barricade Board to Square Post Upright Hardware Kit

Use the Barricade Board to Square Post Upright Hardware Kit to easily mount barricade boards to square posts.

PRODUCT ID: RSPB3ZBUZSPUH
Everything you need to mount 3 barricade boards to 2 upright posts.

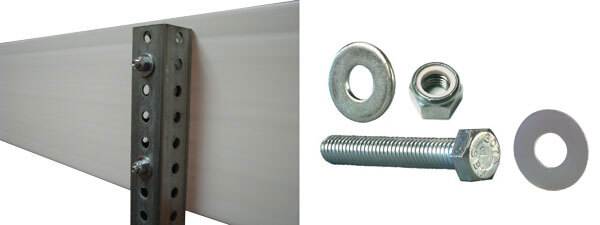

Kit includes 12 each: 5/16" steel washer, 5/16" nylon washer, 5/16" Hex Lock Nut and 5/16" x 3" Hex Head Bolt.
NOTE: Install nylon washers in front to keep the bolt head away from the sign face. Nylon washers are required with prismatic reflective sign sheetings to maintain applicable warranties.

Hardware Kit

Videos

About Barricades

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

Type 1 Barricades may be used on conventional roads or urban streets.
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
Type 3 Barricades should be used to close or partially close a road.
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

About Barricade Stripes

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
Red/White Stripes: STOP or Prohibition (Permanent)
Orange/White Stripes: indicate Temporary Traffic Control
NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
