3" x 27" Brite Max Straight Post Mount Guardrail Delineator Markers
This Marker Sold Individually.
Use the 3" x 27" Brite Max Straight Post Mount Guardrail Delineator Markers to mark guardrails with reflective posts.
- PRODUCT ID: BMGS0327(X)(XX)(S/D)
- Reflective Sheeting (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade - Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow
- Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
- Reflectivity: 3" x 12" sheeting provides 36" square inches of reflectivity.
- Body Size: 3" x 27"
- Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
- 27" tall guardrail markers are designed to function the same as ground mounted delineators when mounted to a wooden guardrail post - the reflectors are positioned at 48" above the roadway surface.
- This high profile design makes them more effective along roadways where vision is partially obstructed by hills, curves, snow, and vegetation both day and night.
- Compatibility: Easy to install on wooden guardrail posts. Guardrail reflectors can be either adhesively or bolt mounted to metal guardrails.
- NOTE: Adhesive and hardware, sold separately.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.
About Delineators
MUTCD CHAPTER 3F.01 Delineators
- Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
- Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
- Delineators are considered guidance devices rather than warning devices.
- Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

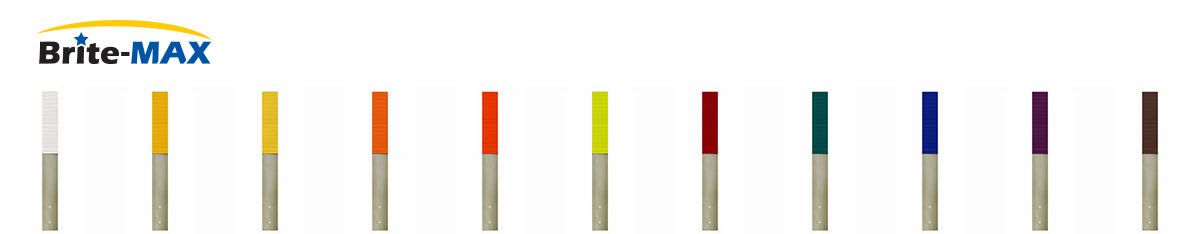

Color Definitions
- WHITE: Lane markings or to mark the right pavement edge.
- YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
- RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
- BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
- GREEN: Used for snowplow markings.
- ORANGE/FLUORESCENT ORANGE: Used in construction work zone areas.
