Brite-Max Multi-View 27" Straight Post Mount Guardrail Delineator Markers
The Brite-Max Multi-View Delineator is the best delineator on the market for combined safety and durability.
This Marker Sold Individually.
Use the Brite-Max Multi-View 27" Straight Post Mount Guardrail Delineator Markers to mark your guardrail with a reflective marker.
- PRODUCT ID: BMGSMV0427(X)(XX)(S/D)

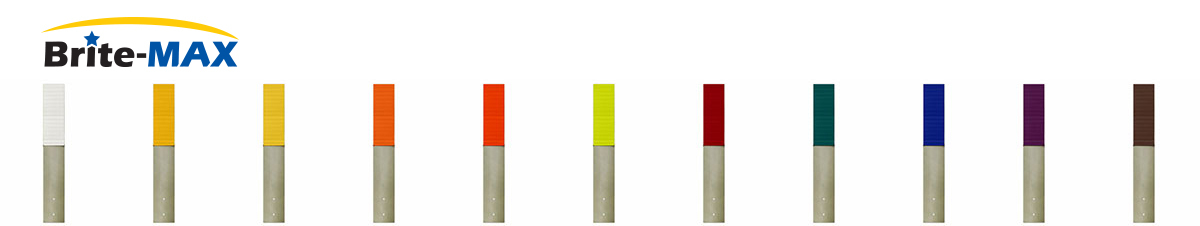

- Reflective Sheeting (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade - Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow
- Reflective Sides (S/D): (S) Single-Sided | (D)Double-Sided
- Reflectivity: 4" x12" sheeting provides 48" square inches of reflectivity.
- Body Size: 3.75" x 27" x .75
- Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
- The long term durability of aluminum backing plus the extreme angularity of the Multi-View profile combine to form an unbeatable product.
- Illuminate invisible guardrails at night with bright reflective markers that provide clear delineation.
- Compatibility: Easy to install on wooden guardrail posts. Multi-Views can be bolt mounted to metal guardrails.
- NOTE: Hardware is sold separately.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.
About Delineators
MUTCD CHAPTER 3F.01 Delineators
- Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
- Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
- Delineators are considered guidance devices rather than warning devices.
- Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.
Color Definitions
- WHITE: Lane markings or to mark the right pavement edge.
- YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
- RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
- BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
- GREEN: Used for snowplow markings.
- ORANGE/FLUORESCENT ORANGE: Used in construction work zone areas.
