Brite Max Butterfly (Aluminum) Guardrail Delineators
The Aluminum body of Brite-Max Delineators provides long life in all climates and provides effective guidance at night, in low light and adverse weather conditions.
- PRODUCT ID: BMGRD(XXX)(1/2)(X)(XX)

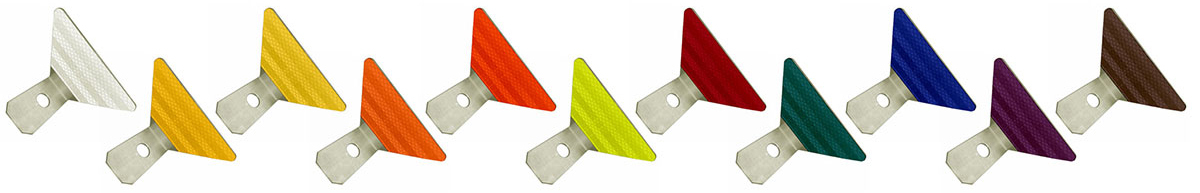

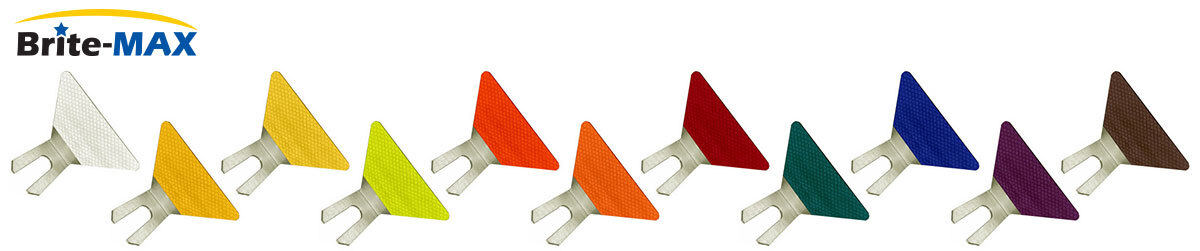

- Installation Type (XXX): (567) Slot installs on existing guardrail bolt | (818) Hole installs on new guardrail
- Reflective Sheeting (X): (H) High Intensity Prismatic | (3) DG3 Diamond Grade
- Reflective Sides (1/2): (1) Single-Sided* | (2) Double-Sided
- *NOTE: Industry Standard for Single-Sided Reflective placement on the side that bends towards the fork side as shown in images. Custom orders of these guardrail reflectors for non-standard single-sided reflective placement are available by custom order, call 1-800-367-1492.
- Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
- Reflectivity: Provides 8.5" square inches of reflectivity.
- Body Substrate: .080" Aluminum provides long life in all climates in both work zones and permanent installations.
- Compatibility: Butterfly shape fits in the center channel for protection from accidental damage or vandalism.
- Illuminate invisible guardrails at night with bright reflective markers that provide clear delineation.
- MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
Utilize Brite-Max Butterfly Guardrail Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.
About Delineators
- Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
- Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
- Delineators are considered guidance devices rather than warning devices.
- Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.
Color Definitions
- WHITE: Lane markings or to mark the right pavement edge.
- YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
- RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
- BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
- GREEN: Used for snowplow markings.
- ORANGE/FLUORESCENT ORANGE: Used in construction work zone areas.
