Brite Max BMGA025 A Style (Aluminum) Barrier or Guardrail Post Mount Delineator
This Marker is Sold Individually.
Use the Brite Max BMGA025 A Style (Aluminum) Barrier or Guardrail Post Mount Delineator to mount of concrete barricades or guardrail posts.
- PRODUCT ID: BMGA025(X)(XX)(S/D)
- Reflective Sheeting (X):
(H) High Intensity Prismatic

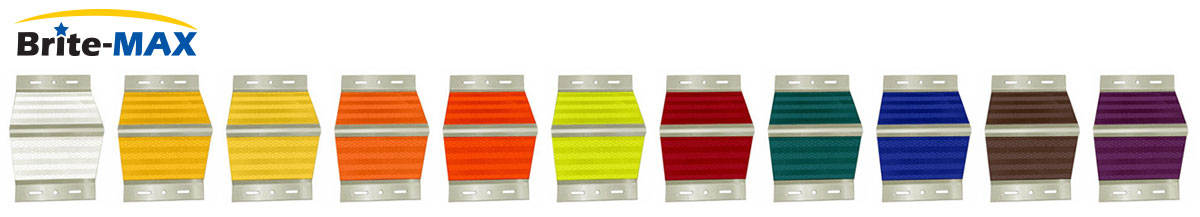

(3) DG3 Diamond Grade - Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
- Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
- Reflectivity: 4" x 2.75" sheeting provides 11" square inches of reflectivity
- Body Size: 6.5" long x 4" wide x 2.5" tall in the bent position.
- Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
- Compatibility: The Brite-Max A-Style BMGA025 Delineator is compatible with concrete barriers or guardrail post. Barrier mounting can be on top and/or on the side.
- MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
- Installation: Brite-Max A-Style Delineators have 4" x 3/4" mounting surfaces with (2) 1/4" diameter holes for fasteners and (4) 3/16" x 3/4" obround holes to assist with adhesion.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.
About Delineators
MUTCD CHAPTER 3F.01 Delineators
Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
- Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
- Delineators are considered guidance devices rather than warning devices.
- Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.
Color Definitions
- WHITE: Lane markings or to mark the right pavement edge.
- YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
- RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
- BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
- GREEN: Used for snowplow markings.
- ORANGE: Used in construction work zone areas.
