Barricade Boards

Use these orange and white Barricade Boards to help block off certain areas and roads.

PRODUCT ID: RSPB3Z(XXX)S(R)M(S/D)(L/R)OW6
Barricade Length (XXX): (048) 48" (4 ft) | (072) 72" (6 ft) | (096) 96" (8 ft) | (120) 120" (10 ft) | (144) 144" (12 ft)
Reflective Sheeting (R): (H) High Intensity Prismatic | (D) Diamond Grade Cubed
Sides (S/D): (S) Single Sided | (D) Double Sided
Stripe Direction (L/R): (L) Left | (R) Right or (D) Double Sided which is Left on Side 1 and Right on Side 2
Stripe Colors: (OW) Orange/White
Barricade Dimensions: 1" thick x 8" wide by length of choice above.
Use road block barricade boards with multiple barricade leg options, sold separately.
Call customer service at 1-800-367-1492 to order other stripe colors and configurations.

Videos

About Barricades

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

Type 1 Barricades may be used on conventional roads or urban streets.
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
Type 3 Barricades should be used to close or partially close a road.
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

About Barricade Stripes

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
Red/White Stripes: STOP or Prohibition (Permanent)
Orange/White Stripes: indicate Temporary Traffic Control

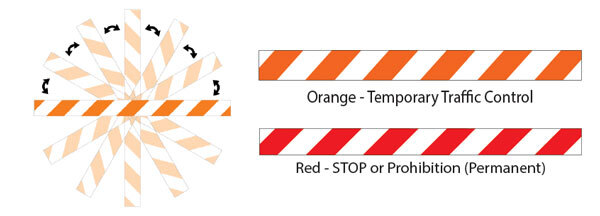

NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
