Type III: Sentinel - All Plastic Barricade Frame
Use the Type III: Sentinel - All Plastic Barricade Frame as an easy to put together barricade. It requires no hardware.
- PRODUCT ID: RSPB3KPPSBU
- Build a Custom Package with Sentinel Frame and 1" x 8" Barricade Boards of your choice.
- Compatibility: Recommended use with (3) three, 4 ft or 6 ft long 1" x 8" boards. Not intended for boards over 6ft in length. Barricade Boards, Sold Separately.
- Easy to assemble base consists of 2 pieces, upright and base, that snap together, no hardware required.
- Sentinel base can be internally ballasted with sand, sandbags, or water in warmer climates.
- MASH Passed/Meets MUTCD Standards
- NOTE: Call customer service at 1-800-367-1492 for customized options.
About Barricades
A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.
- Type 1 Barricades may be used on conventional roads or urban streets.
- Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
- Type 3 Barricades should be used to close or partially close a road.
- Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
- Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.
About Barricades
The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.
- 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
- 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
- Red/White Stripes: STOP or Prohibition (Permanent)
- Orange/White Stripes: indicate Temporary Traffic Control

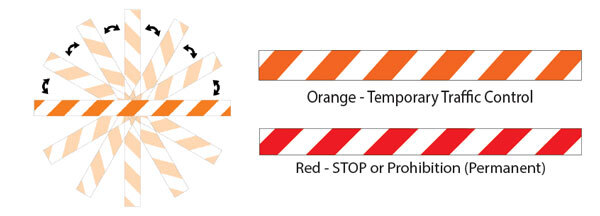

- NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
