Type III: Telespar Breakaway Kit #2 Welded Riser & Quick Release Pins
The Type III: Telespar Breakaway Kit #2 Welded Riser & Quick Release Pins comes with everything you need for a Type III barricade except for the barricade boards.
- PRODUCT ID: RSPB3ZBUS1QR

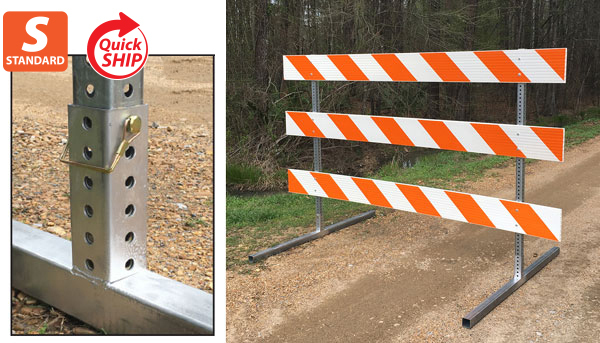

- Kit #2 features a Welded Riser Design with Quick Release Pin
- Material: 14 gauge galvanized steel square post breakaway system
- Post Size: 2" Feet & 1.75" Uprights
- Kit #2 Includes:
(2) Two - 5ft long Telespar® Feet with 6" Welded Risers
(2) Two - 5ft long Telespar® Uprights
(1) One - Hardware Kit - Board to Square Post Upright (2) Two - Quick Release Lock Pins - Choose Barricade Boards (Sold Separately from Breakaway Kit)
- Telespar Breakaway Kit #2 allows quick removal of uprights from feet or bases for short term or permanent placement.
- Easy to assemble and replace parts, if necessary.
- The Telespar® Square Posts shape provides superior wind load capabilities and inhibits warping. Galvanized, hot rolled high carbon steel. Pre-punched mounting 7/16" holes. Upright accepts a flashing barricade light.
- Meets MUTCD Standards.
- NOTE: Barricade Boards, Sold Separately.
About Barricades
A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.
- Type 1 Barricades may be used on conventional roads or urban streets.
- Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
- Type 3 Barricades should be used to close or partially close a road.
- Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
- Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.
About Barricade Stripes
The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.
- 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
- 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
- Red/White Stripes: STOP or Prohibition (Permanent)
- Orange/White Stripes: indicate Temporary Traffic Control
- NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
