Type I and II Plasticade Barricades

Use Type I and II Plasticade Barricades with ease. These Plasticade barricades from trusted distributors are ideal for public works projects, construction sites, and road blockades.

PRODUCT ID: RSPB1PPPL(T)(XX)(R)(TPBP)
Barricade Type (T): (1) Type I | (2) Type II
Body Color (XX): (WH) White | (OR) Orange
Reflective Sheeting (R): (E) Engineer Grade | (H) High Intensity Prismatic | (D) Diamond Grade
Type I Panel Sizes (TPBP):
(08) 8" x 24" Reflective Top Panel
(12) 12" x 24" Reflective Top Panel
Type II Panel Sizes (TPBP):
(08) 8" x 24" Reflective Top Panel | 8" x 24" Reflective Bottom Panel
(12) 12" x 24" Reflective Top Panel | 8" x 24" Reflective Bottom Panel

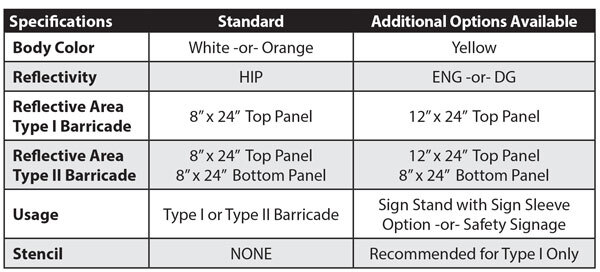

Barricade Reflective Panel Specifications:
Reflective Sides: Double-Sided
Stripe Colors: Orange/White
Stripe Direction: Side 1 - Right Stripes | Side 2 - Left Stripes
Premium Type I and II Plasticade Barricade withstands repeated impacts.
Ideal for public works projects.
These road safety barricades have molded-in handles with mounting holes for attaching flashing lights.
"Click lock" hinges for a positive interlock in the open position.
Internal ballasting, up to 10 lbs. of sand
Sandbag bar (for additional weight)
Stacking lugs keep units from sliding when stacked.
MASH Passed/Meets MUTCD Standards.

Videos

Call customer service at 1-800-367-1492 to order stenciling, other strip colors and configurations.

About Barricades

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

Type 1 Barricades may be used on conventional roads or urban streets.
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
Type 3 Barricades should be used to close or partially close a road.
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

About Barricade Stripes

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
Red/White Stripes: STOP or Prohibition (Permanent)
Orange/White Stripes: indicate Temporary Traffic Control
NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
